This is a bespoke concave style wheel. Due to the concavity this wheel has limited fitments and is restricted to a relatively low off-set
See separate fitment notes

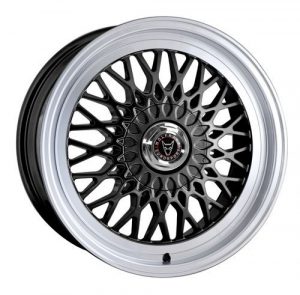

Classic
SIZE
ET
HOLE
P.C.D.
Load (KG)
18×8.5
20 -45
4.5
98 – 120
885
Note this wheel can only be drilled 4 or 5 holes according to part number as separate moulds are used for 4/5 stud drilling.

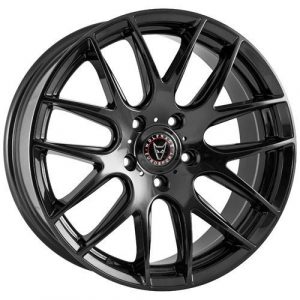

Munich
SIZE
ET
HOLE
P.C.D.
Load (KG)
20×8.5
35-42
5
98-120
885
Note backpad cannot be machined,wheel has a fixed offset.

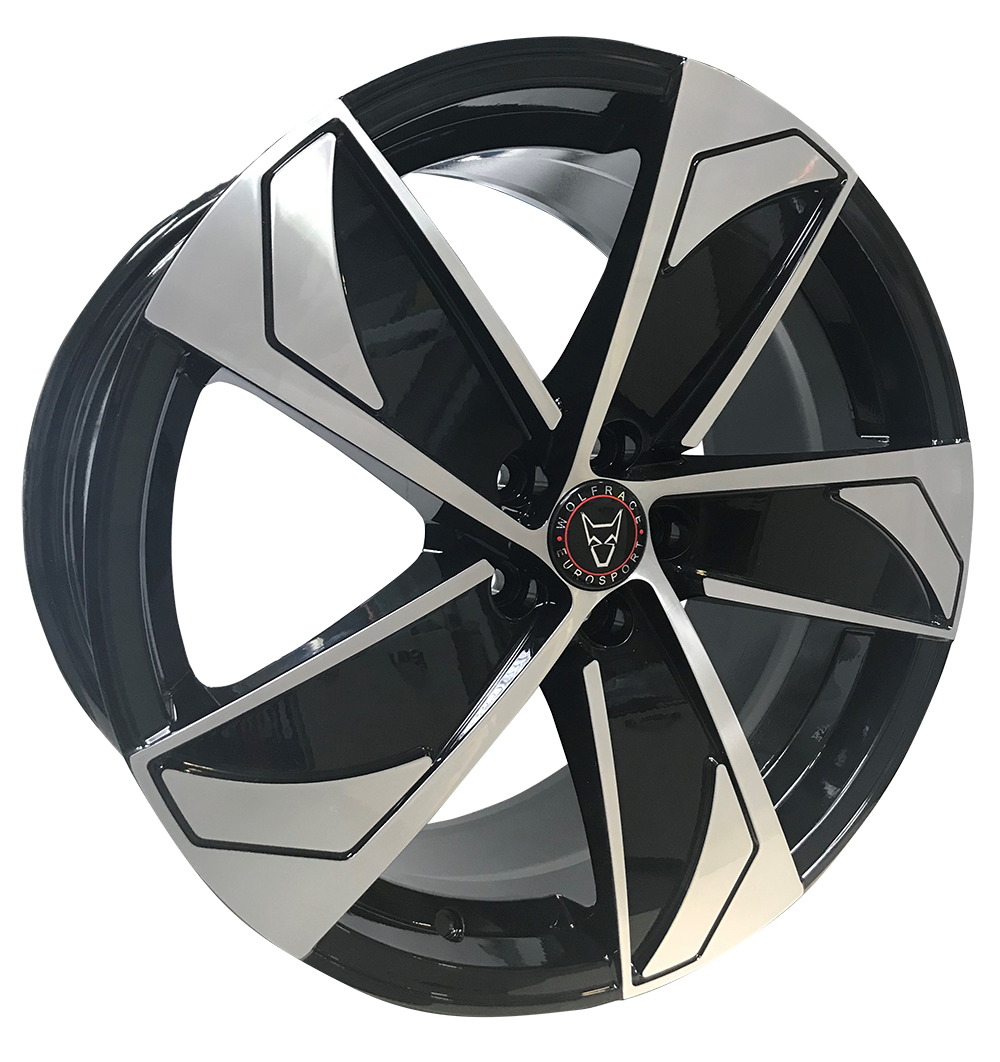

AD5
SIZE
ET
HOLE
P.C.D.
Load (KG)
18×8.0
35-42
5
98-120
885
Note backpad cannot be machined,wheel has a fixed offset.
Dortmund
SIZE
ET
HOLE
P.C.D.
Load (KG)
20×8.5
35-42
5
98-120
960
Note backpad cannot be machined,wheel has a fixed offset.

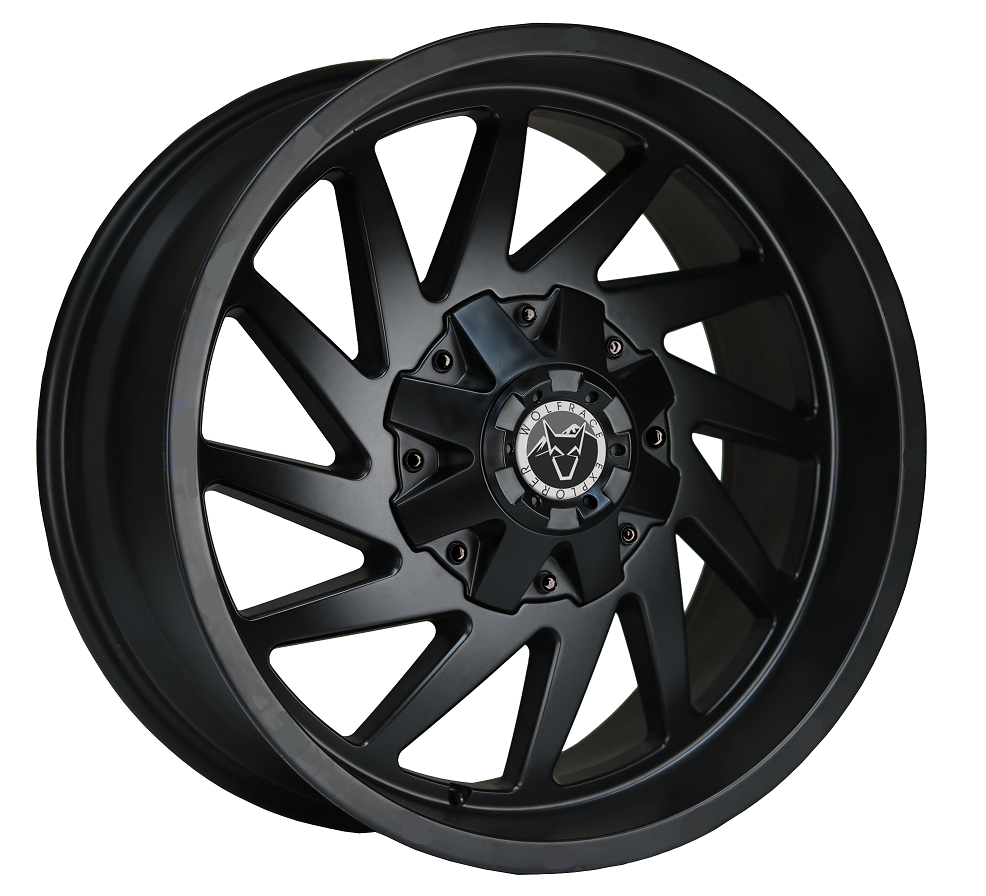

Wildtrek
SIZE
ET
HOLE
P.C.D.
Load (KG)
20×9
0-35
5,6
100-139
1000
Amazon
SIZE
ET
HOLE
P.C.D.
Load (KG)
17×9
0-35
5,6
100-139
955
18×9
0-35
5,6
100-139
955
20×9
0-35
5,6
100-139
955
20×10
0-35
5,6
100-139
955

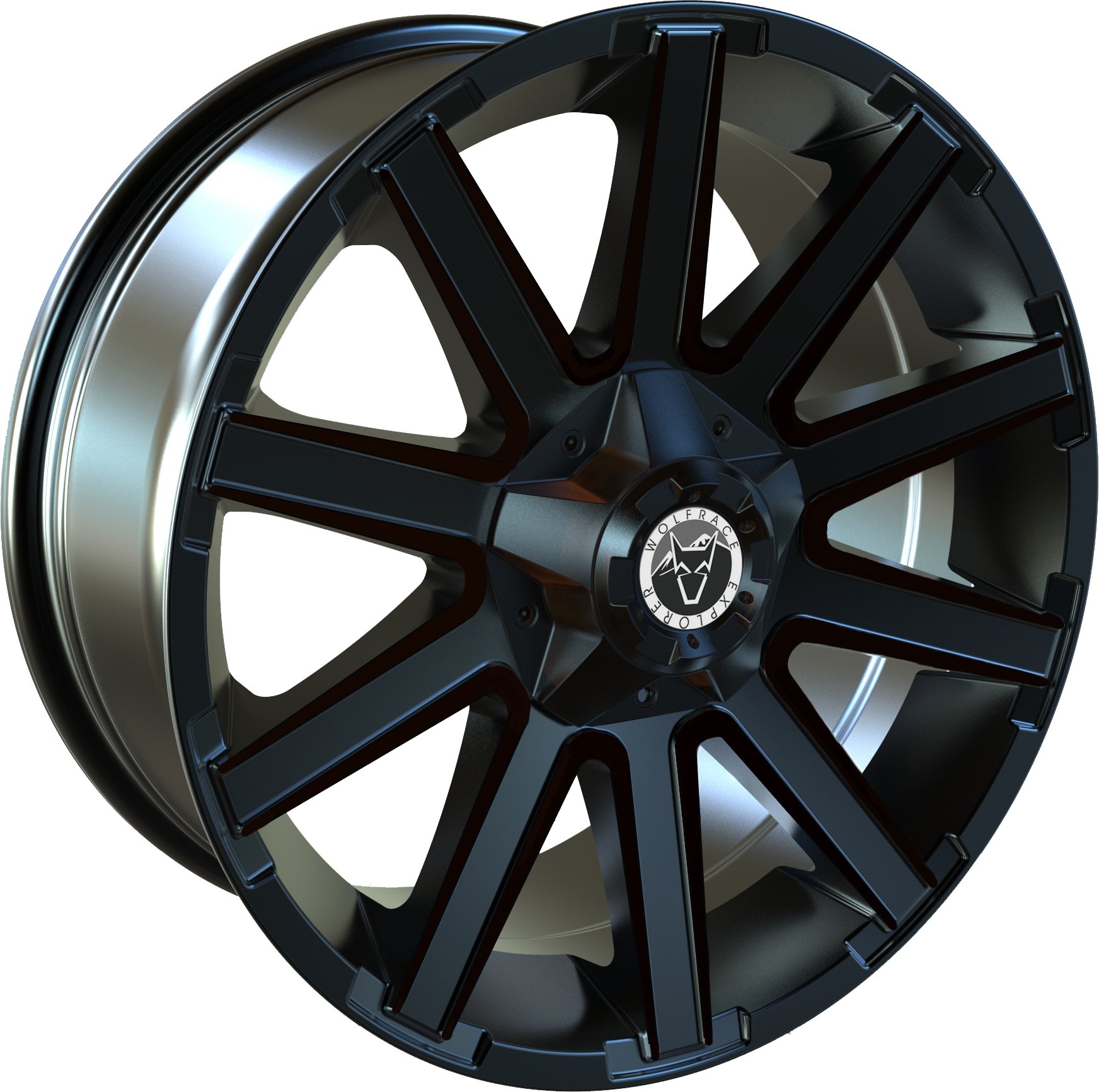

Kalahari
SIZE
ET
HOLE
P.C.D.
Load (KG)
20×9
0-35
5,6
100-139
955

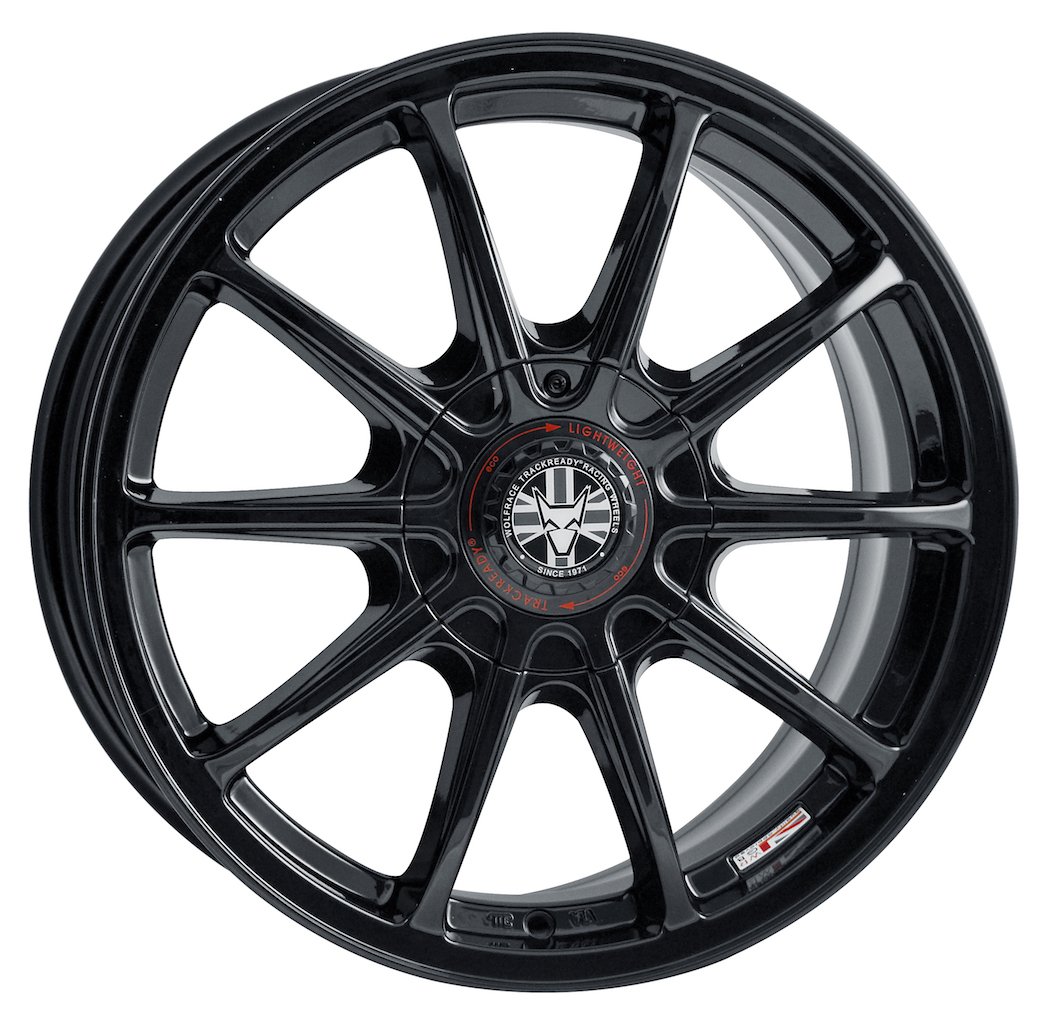

Pro-Lite
SIZE
ET
HOLE
P.C.D.
Load (KG)
17×7.5
35-48
4,5
98-120
690
18×8.0
35-48
4,5
98-120
690
17×9.0
35-48
4,5
98-120
690
The Pro-Lite’s construction makes it suitable for both road and track work
